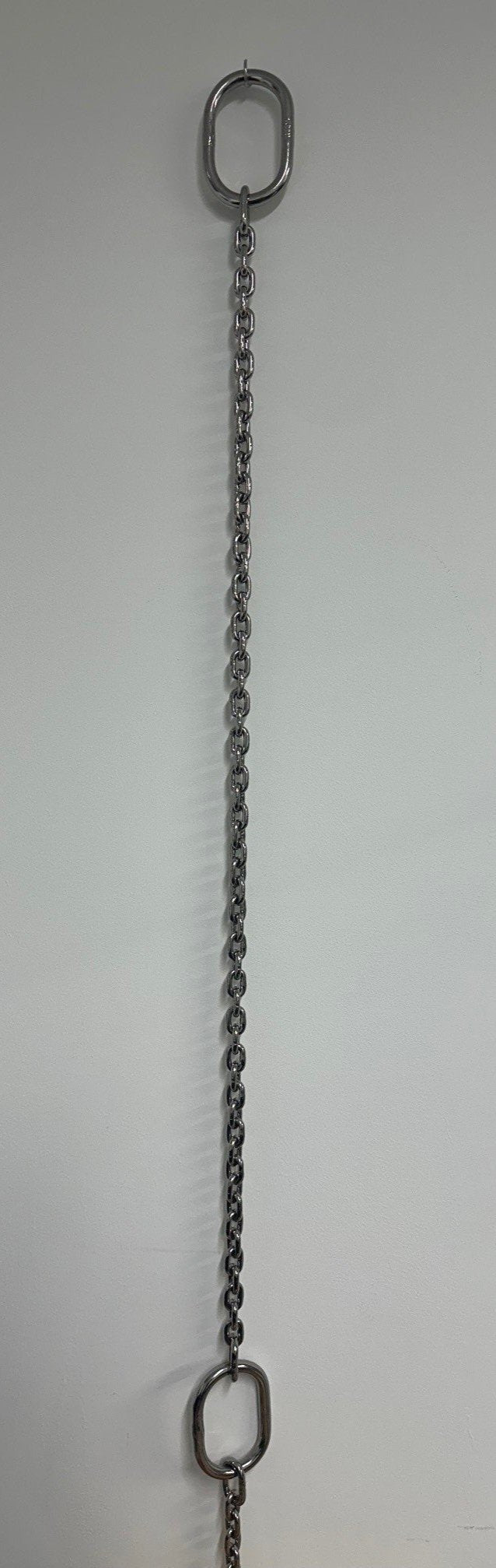

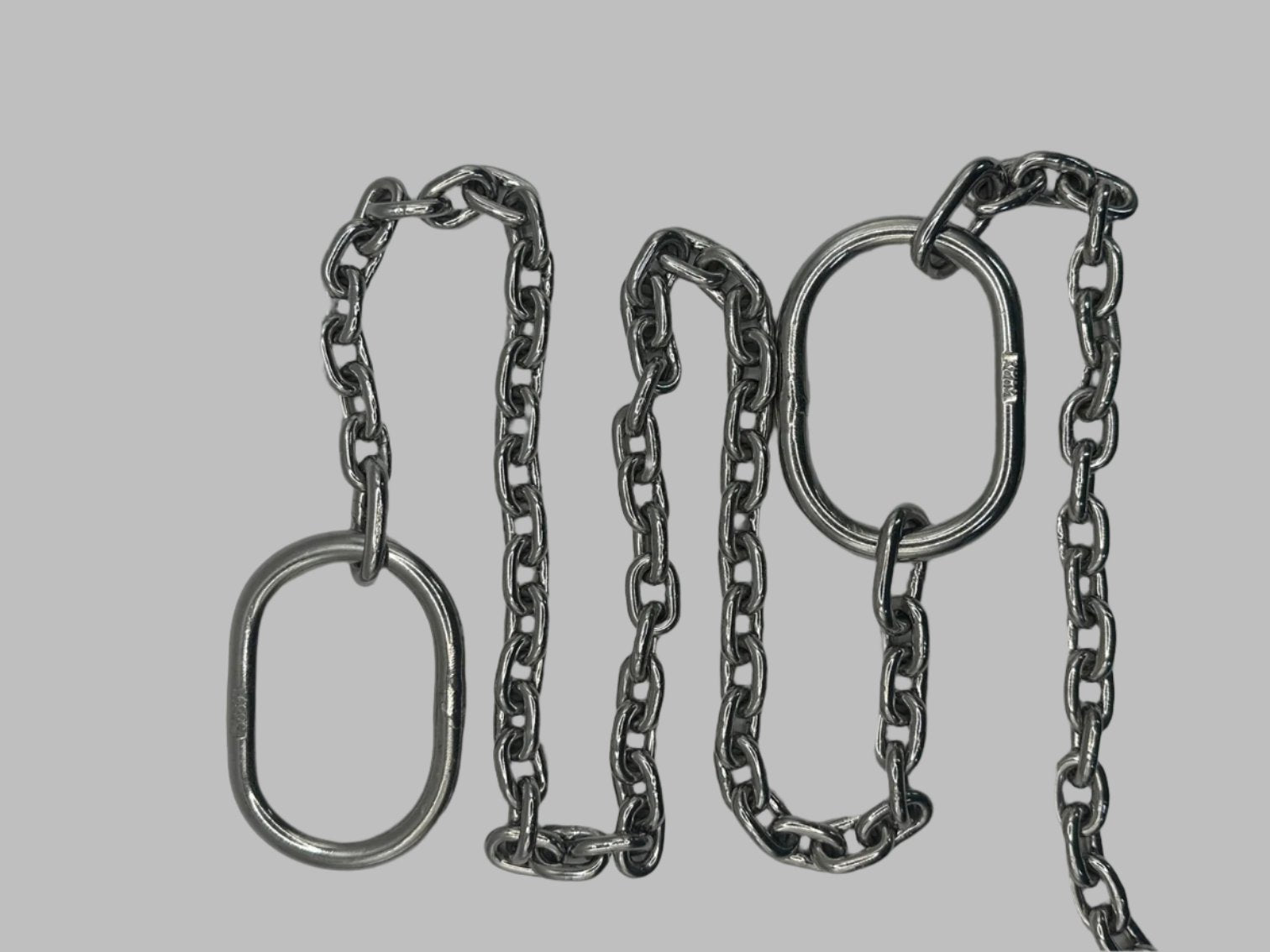

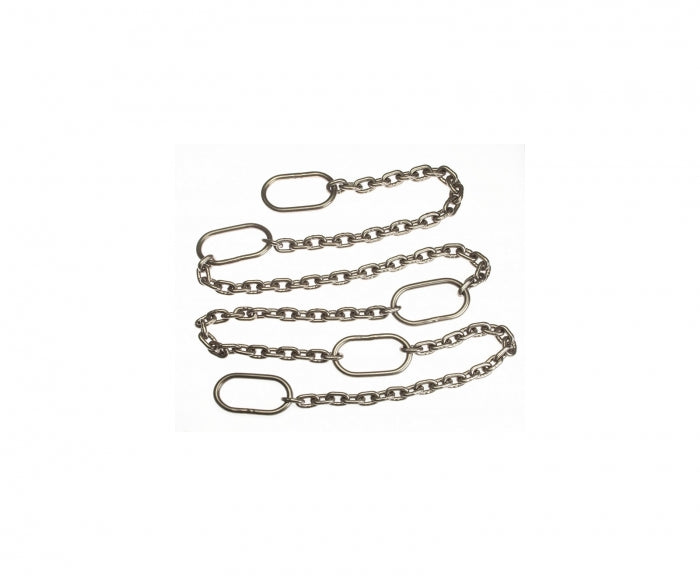

500kg Stainless Steel Pump Chain

500kg Pump Lifting Chains - AISI 316L Stainless Steel

Fitted with index lifting at each end and at one metre centres.

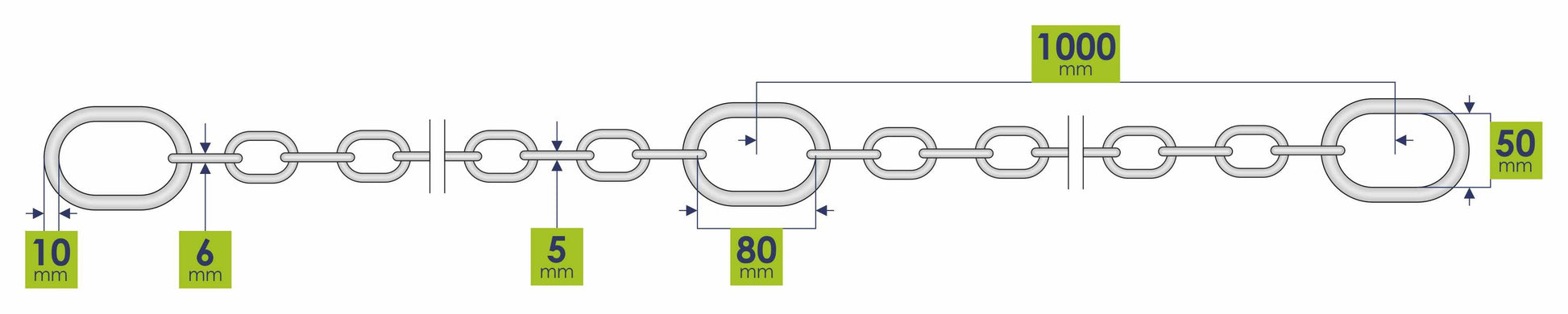

Product Size

Master Link  10mm Diameter x 80mm Internal Length x 50mm Internal Width

Intermediate Link  6mm Diameter x 26mm Internal Length x 13mm Internal Width

Chain Link  5mm Diameter x 15mm Internal Length x 7mm Internal Width

Production and Quality Information

Manufactured from corrosion resistant Stainless Steel to AISI316L

Full traceability for all components used

Every Master Link embossed with batch number

Assemblies are Proof Load Tested to twice the WLL, Factor of safety 4:1

Full certification available for every assembly

Finish - Polished
